Category:

Description

nScan 1060 ADF Duplex Document, Card & Passport Scanner

nScan 1060 60ppm High Speed Document Document, Card and Passport Scanner

MODEL # DS1060-ATH

$799.00

Versatile, durable and efficient, the nScan 1060 is the preferred piece of equipment to handle most facility scanning needs. This scanner comes equipped with a TWAIN Driver, AmbirScan ADF and can scan various documents in color, such as ids, passports and traditional paper.

This scanner is perfect for busy work environments with a 60 PPM scanning speed and superior paper handling. A 3-year warranty guarantees you’ll have a reliable scanner that’s in it for the long haul.

VMWare Partner. Compatible with Windows 8, 10, 11.



Versatile and Powerful.

Instead of buying multiple scanners for varying documents, save money and get a reliable scanner that does IDs, passports, and documents all in one.

Compact Design

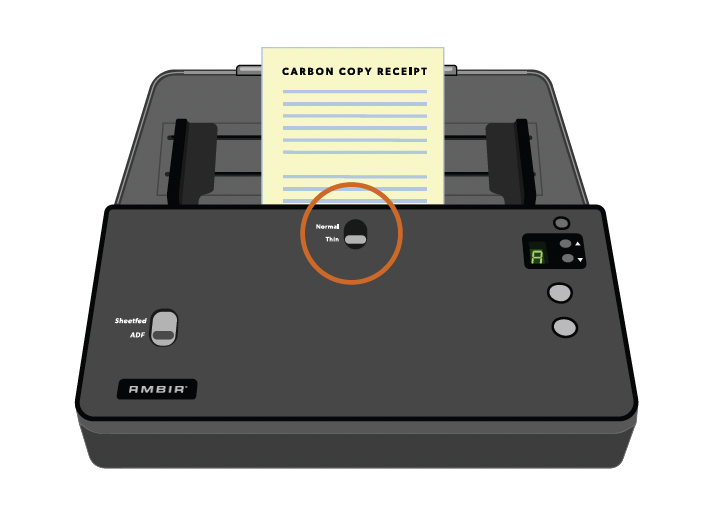

Thin scanning mode for delicate documents.

Keep important documents safe, including thin, delicate ones. This includes carbon copies. This prevents the paper from being jammed and makes it easier for thinner documents to glide through.

Professional Grade
Asymmetrical paper feeding guide for easy feeding.

This accommodates various document stacks. This means smoother paper handling and more efficient document scanning.

Feature Rich Product and Software
9 customizable profiles.

Customize your scanner’s buttons to a specific need for quick, easy access.

Compatible with EMRs
Complete solution.

Every Ambir scanner comes with highly-compatible TWAIN drivers that enable the scanner to work with virtually any Electronic Health Records or Document Management application.

Features


High-speed passport scanning.
Enable Sheetfed mode on our ADF scanner to scan through Passports and other thick documents. When you’re ready to go back to scanner paper, you can quickly switch back to ADF mode.

9 customizable profiles.
Customize your scanner’s buttons to a specific need for quick, easy access.

High Speed Duplex Scanning.
Save time by quickly scanning both sides of double-sided documents and cards in a single pass.

Professional Grade Quality.
Durable and reliable enough for high-volume environments like customer registration, medical records and back office scanning areas.

Specifications


Supported Operating Systems – Windows 7/8/10/11

Scan Speed – 60 ppm/ 120 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Grayscale/B&W mode, 300 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Color mode, 200 dpi, A4 Portrait) 60 ppm/ 120 ipm | (Color mode, 300 dpi, A4 Portrait)

Software Included – AmbirScan ADF

3-Year Warranty

Drivers – TWAIN Compliant

Daily Duty Scans – Up to 8,000

Separation Roller Lifetime (scans) – 300,000 – replacement roller may be easily installed by user

Feed Roller Lifetime (scans) – 300,000 – replacement roller may be easily installed by user

ADF Capacity – 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 2. 30 sheets (Business Cards, landscape feeding) 3. Plastic Card, Max. thickness under 1.2 mm landscape feeding

Power Supply – 24 Vdc/ 1.25 A

Scan Area – Max: 216 x 5080 mm (8.5” x 200”) Min: 13.2 x 13.2 mm (0.52” x 0.52”)

Optical Resolution – 600 dpi

Scan Modes – Color: 48-bit input, 24-bit output | Grayscale: 16-bit input, 8-bit output | B/W: 1-bit

Dimensions – 319.9 x 298.2 x 236.6 mm (12.59″ x 11.74″ x 9.32″)

Weight – 4.1 Kgs (9.04 Lbs)

Interface – USB 3.0 x 1, USB 3.0 (Host) x 1

Safety Standards – FCC Class B, CE

Environmental Requirement – RoHS, WEEE

*Scan speed will vary based on alternate settings and type of material being scanned

Bundled software application(s) and/or version numbers of software applications are subject to change without notice

Support


Visit https://ambir.combackup/adf-ath/ for drivers and information how to set-up your nScan 1060 scanner for Athena.

When you buy Ambir, you get more than just a great scanner. It comes bundled with a warranty that includes limited parts & labor coverage and comprehensive U.S.-based phone & online chat support.

We can be reached M – F from 8:00 am – 5:00 pm CT

USA / INT 1-630-530-5400 Option 3
